ListView Interface Reference

ListView control displays a list of items and allows the user to select one or more items from the list. More...

Inheritance diagram for ListView:

Inheritance graph
Collaboration diagram for ListView:

Collaboration graph
List of all members.

Public Member Functions

 Add ([in] BSTR Text,[out, retval] IDispatch **pItem)
 Use this method to add a new item to the collection.
 Insert ([in] LONG Index,[in] BSTR Text,[out, retval] IDispatch **pItem)
 Use this method to insert a new item to the collection.
 Remove ([in] LONG Index)
 Call this method to remove one item from the collection.
 Clear ()
 Removes all of the items from the collection.
 BeginUpdate ()
 Prevents repainting of the control until the EndUpdate method is called.
 EndUpdate ()
 Enables control repainting that was prevented with the BeginUpdate method.
 SelectAll ()
 Selects all items.
 ClearSelection ()
 Clears the selection leaving all items unselected.
 EditItem ([in] LONG Index)
 Starts editing an item.
 Sort ([in, defaultvalue(DT_STRING)] LONG DataType,[in, defaultvalue(FALSE)] VARIANT_BOOL Reverse,[in, defaultvalue(0)] ULONG Column)
 This method sorts the items by value in the specified column.
 Arrange ()
 Intended for use with WorkAreas.

Properties

LPUNKNOWN R _NewEnum []
 Returns the enumerator for the collection.
VARIANT R Item [[in] long Index] []
 Returns the specified item in the collection.
long RW Count []
 Returns or sets the number of items in the collection.
IDispatch *RW LargeImages []
 Defines which ImageList will be used to display image for each item in the list when Style = LVS_ICON.
IDispatch *RW SmallImages []
 Defines which ImageList will be used to display image for each item in the list when Style is not LVS_ICON.
IDispatch *RW StateImages []
 Defines which ImageList will be used to display state image for each item.
LONG RW Style []
 Gets or sets the style of the ListView.
ULONG RW TextBkColor []
 Gets or sets the color of the text background of an item.
VARIANT_BOOL RW MultiSelect []
 Specifies whether the user can select more than one item at a time.
VARIANT_BOOL RW HideSelection []
 Specifies whether the ListView displays which item is selected when an another control has focus.
LONG R SelCount []
 Gets the number of items that are selected.
LONG RW ItemIndex []
 Gets the index of the focused item.
IDispatch *R Columns []
 Gets the ListViewColumns object, that used when Style = LVS_REPORT.
VARIANT_BOOL RW CheckBoxes []
 Specifies whether the ListView displays checkbox for each item.
VARIANT_BOOL RW GridLines []
 Specifies whether the ListView displays grid lines.
VARIANT_BOOL RW HotTrack []
 Specifies that the items under the mouse pointer are automatically highlighted.
VARIANT_BOOL RW RowSelect []
 Specifies that the entire row in the ListView will be selected when an item will be selected.
VARIANT_BOOL RW BorderSelect []
 Specifies whether the ListView displays border for the selected item.
VARIANT_BOOL RW FlatScrollBars []
 Specifies that the scrollbars has flat style.

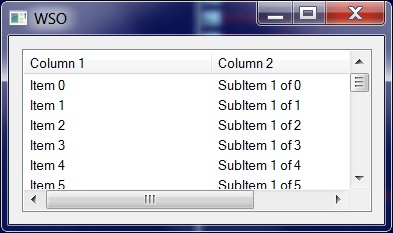

VARIANT_BOOL RW OwnerData []
 Specifies that the ListView in Virtual mode.
VARIANT_BOOL RW ReadOnly []
 Use this property to prevent the user from editing text of an item in the ListView control.
VARIANT_BOOL RW WrapText []
 Specifies that the text of the items can be wrapped.
LONG RW Arrangement []
 Specifies the items arrangement.
VARIANT_BOOL RW HeaderDragDrop []
 Enables drag-and-drop reordering of columns.
VARIANT_BOOL RW InfoTip []
 Enables hints Hint for items.
VARIANT W BackgroundImage []
 Specifies the image of the background.

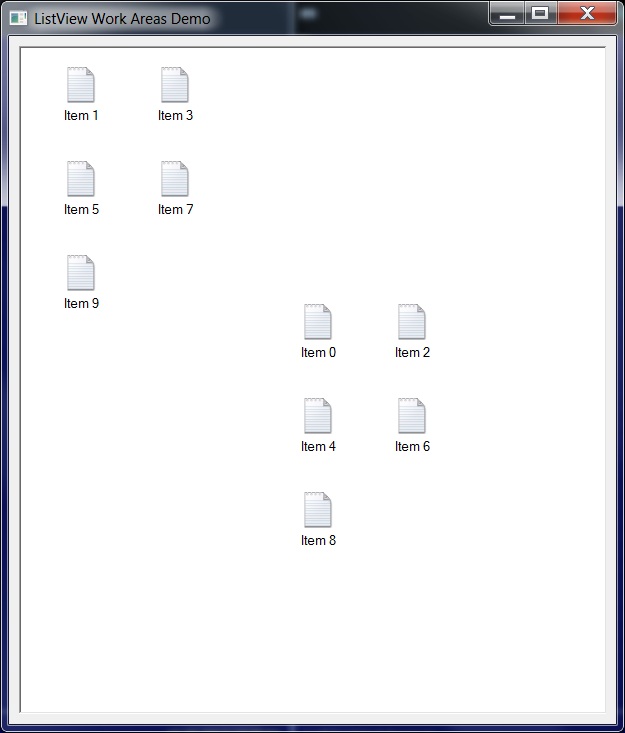

IDispatch *R WorkAreas []
 Defines Work Areas for ListView.

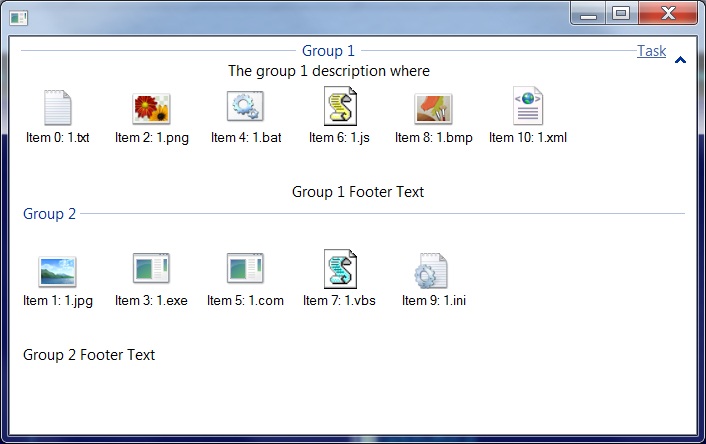

IDispatch *R Groups []
 Defines Groups for ListView.

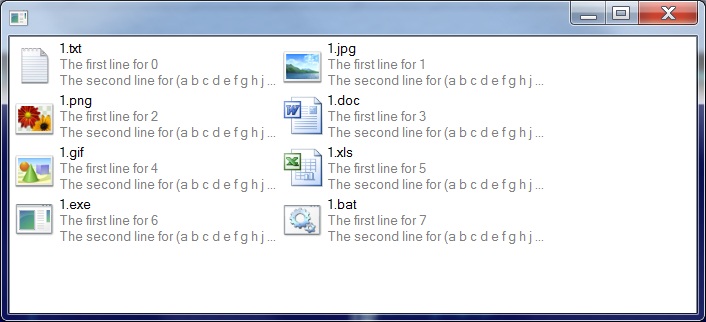

ULONG RW TileLines []
 Intended for Style = LV_VIEW_TILE.
ULONG RW TileWidth []
 Intended for Style = LV_VIEW_TILE.
ULONG RW TileHeight []
 Intended for Style = LV_VIEW_TILE.
VARIANT_BOOL RW DoubleBuffering []
 When "TRUE" control will be painted with double-buffering, which reduces flicker.
VARIANT_BOOL RW TransparentBackground []
 When "TRUE" control will transparent.
IDispatch *RW GroupHeaderImages []
 Defines which ImageList will be used to display image for each group (Groups) in the list.
LONG RW IconSpacingWidth []
 Intended for Style = LVS_ICON.
VARIANT_BOOL RW CustomDraw []
 When "TRUE" font and colors of an element can be specified by: Font, TextBkColor, SubItemsEx (Font).
LONG RW IconSpacingHeight []
 Intended for Style = LVS_ICON.
VARIANT_BOOL RW ReadOnlySubItems []
 If "FALSE" the ListView's sub items can be edited.
VARIANT_BOOL RW QuickEdit []
 This property used when ReadOnlySubItems = "FALSE" and the user can edit a sub item of an item.
VARIANT_BOOL RW CheckByMouse []
 If "TRUE" then the user can check an item by mouse.
VARIANT W OnColumnClick []
 Sets the event handler for the OnColumnClick event.
VARIANT W OnColumnResize []
 Sets the event handler for the OnColumnResize event.
VARIANT W OnData []
 Sets the event handler for the OnData event.
VARIANT W OnItemCheck []
 Sets the event handler for the OnItemCheck event.
VARIANT W OnEdited []
 Sets the event handler for the OnEdited event.
VARIANT W OnBeginEdit []
 Sets the event handler for the OnBeginEdit event.
VARIANT W OnGroupLinkClick []
 Sets the event handler for the OnGroupLinkClick event.
VARIANT W OnDrawItem []
 Sets the event handler for the OnDrawItem event.
VARIANT W OnSubItemEdited []
 Sets the event handler for the OnSubItemEdited event.
VARIANT W OnBeginSubItemEdit []
 Sets the event handler for the OnBeginSubItemEdit event.

Detailed Description

ListView control displays a list of items and allows the user to select one or more items from the list.

The items can be displayed in columns with column headers, with icons and with subitems.

The ListView object is an collection of ListItem.

See also the method CreateListView of the Frame.

See also ListViewEvents.

Member Function Documentation

Add ( [in] BSTR  Text,
[out, retval] IDispatch **  pItem
)

Use this method to add a new item to the collection.

Parameters:
Text Text of the item.
Return values:
pItem New ListItem object.

Arrange (  )

Intended for use with WorkAreas.

Rearranges elements after placing its in a WorkArea.

Since:
1.1.10.

BeginUpdate (  )

Prevents repainting of the control until the EndUpdate method is called.

Clear (  )

Removes all of the items from the collection.

ClearSelection (  )

Clears the selection leaving all items unselected.

EditItem ( [in] LONG  Index  )

Starts editing an item.

Parameters:
Index The index of the item.

EndUpdate (  )

Enables control repainting that was prevented with the BeginUpdate method.

Insert ( [in] LONG  Index,
[in] BSTR  Text,
[out, retval] IDispatch **  pItem
)

Use this method to insert a new item to the collection.

Parameters:
Index The index where the item are to be inserted
Text Text of the item.
Return values:
pItem New ListItem object.

Remove ( [in] LONG  Index  )

Call this method to remove one item from the collection.

Parameters:
Index The index of the element to remove.

SelectAll (  )

Selects all items.

Sort ( [in, defaultvalue(DT_STRING)] LONG  DataType,
[in, defaultvalue(FALSE)] VARIANT_BOOL  Reverse,
[in, defaultvalue(0)] ULONG  Column
)

This method sorts the items by value in the specified column.

See also Data types.

Parameters:
DataType The data type.
Reverse Enables reverse sorting.
Column The index of the column.
Example:
o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 550
f.ClientHeight = 250
f.CenterControl()

ListView = f.CreateListView(10,10,280,130,o.Translate("LVS_REPORT"))
ListView.Align = o.Translate("AL_CLIENT")
ListView.Columns.Add("Column 1",150)
ListView.Columns.Add("Column 2",200)
ListView.Columns.Add("Column 3",200)
ListView.OnColumnClick = OnColumnClick
ListView.RowSelect = true

for (i = 1; i<25; i++)
{
        var Item = ListView.Add(i)
        Item.SubItems(0) = RandomText(5)
        Item.SubItems(1) = Math.round(Math.random()*1000)
}

function RandomText(Count)
{
        var S = ""
        var Index
        for (var i = 0; i<Count; i++)
        {
                Index = Math.round(Math.random()*10)
                S += String.fromCharCode("A".charCodeAt(0) + Index)
        }
        return S
}

SortColumn = -1
SortReverse = false

f.Show()

o.Run()


function OnColumnClick(Sender,Column)
{
        f.Text = Column.Text+": index="+Column.Index
        if (SortColumn == Column.Index)
        {
                SortReverse = !SortReverse
        } else
        {
                SortColumn = Column.Index
                SortReverse = false
        }
        var SortMode = o.Translate("DT_STRING")
        if (Column.Index == 0)
                SortMode = o.Translate("DT_INTEGER")
        if (Column.Index == 2)
                SortMode = o.Translate("DT_INTEGER")
        ListView.Sort(SortMode,SortReverse,Column.Index)
}

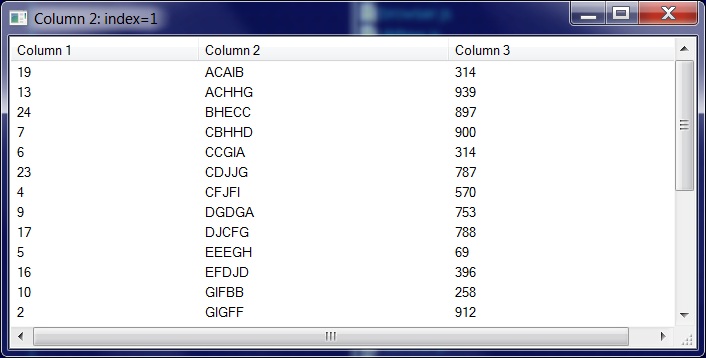

Result:

Property Documentation

LPUNKNOWN R _NewEnum

Returns the enumerator for the collection.

LONG RW Arrangement

Specifies the items arrangement.

Style must be LVS_ICON or LVS_SMALLICON.

This parameter can be one of the following values:

VARIANT W BackgroundImage

Specifies the image of the background.

File name or a Picture object can be used.

Since:
1.1.10.

VARIANT_BOOL RW BorderSelect

Specifies whether the ListView displays border for the selected item.

VARIANT_BOOL RW CheckBoxes

Specifies whether the ListView displays checkbox for each item.

VARIANT_BOOL RW CheckByMouse

If "TRUE" then the user can check an item by mouse.

If "FALSE" then the user can check an item only by keyboard (Space key).

CheckBoxes must be "TRUE".

Default value: "TRUE".

Since:
1.1.15.

IDispatch* R Columns

Gets the ListViewColumns object, that used when Style = LVS_REPORT.

long RW Count

Returns or sets the number of items in the collection.

VARIANT_BOOL RW CustomDraw

When "TRUE" font and colors of an element can be specified by: Font, TextBkColor, SubItemsEx (Font).

Default value: "FALSE".

Example:

o = new ActiveXObject("Scripting.WindowSystemObject")
o.EnableVisualStyles = true

fs = new ActiveXObject("Scripting.FileSystemObject")

f = o.CreateForm(0,0,0,0)

f.ClientWidth = 510
f.ClientHeight = 200
f.CenterControl()
f.Text = "ListView Colors Demo"

Box = f.CreateListView(10,10,250,300,o.Translate("LVS_REPORT"))
Box.RowSelect = true
Box.Align = o.Translate("AL_CLIENT")

//This is required
Box.CustomDraw = true


Box.Columns.Add("Column 1",200)
Box.Columns.Add("Column 2",150)
Box.Columns.Add("Column 3",150)

//Specify Font Size - maximum value and for an item you can use less.
Box.Font.Size = 16
for (i = 0; i<5; i++)
{
        Item = Box.Add("Item "+i)
        if (i % 2 == 0)
        {
                Item.Font.Color = 0x0000FF00
                Item.Font.Size = 12
                Item.SubItemsEx(0).Font.Color = 0x000000FF
                Item.SubItemsEx(1).Font.Color = 0x00F0F000
        }
        if (i == 0)
                Item.TextBkColor = 0x00E0E0FF

        Item.SubItems(0) = "Text"
        Item.SubItems(1) = "Text 2"
}


f.Show()

o.Run()

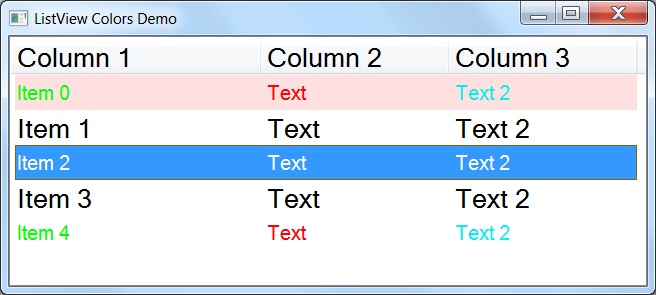

Result:

OnDrawItem event also can be used. Example:

o = new ActiveXObject("Scripting.WindowSystemObject")
o.EnableVisualStyles = true

fs = new ActiveXObject("Scripting.FileSystemObject")

f = o.CreateForm(0,0,0,0)

f.ClientWidth = 510
f.ClientHeight = 200
f.CenterControl()
f.Text = "ListView Colors Demo"

Box = f.CreateListView(10,10,250,300,o.Translate("LVS_REPORT"))
Box.RowSelect = true
Box.Align = o.Translate("AL_CLIENT")

//This is required
Box.CustomDraw = true


Box.Columns.Add("Column 1",200)
Box.Columns.Add("Column 2",150)
Box.Columns.Add("Column 3",150)

//Specify Font Size - maximum value and for an item you can use less.
Box.Font.Size = 16
for (i = 0; i<5; i++)
{
        Item = Box.Add("Item "+i)
        Item.SubItems(0) = "Text"
        Item.SubItems(1) = "Text 2"
}

Box.OnDrawItem = OnDrawItem

function OnDrawItem(Sender,Item)
{
        i = Item.Index

        if (i % 2 == 0)
        {
                Item.Font.Color = 0x0000FF00
                Item.Font.Size = 12
                Item.SubItemsEx(0).Font.Color = 0x000000FF
                Item.SubItemsEx(1).Font.Color = 0x00F0F000
        }
        if (i == 0)
                Item.TextBkColor = 0x00E0E0FF
}

f.Show()

o.Run()
Result:

Since:
1.1.12.

VARIANT_BOOL RW DoubleBuffering

When "TRUE" control will be painted with double-buffering, which reduces flicker.

Do not use when OwnerData = "TRUE" when an OnData call requires some time. Requires Comctl32.dll version 6. Requires visual styles (Themes).

Since:
1.1.10.

VARIANT_BOOL RW FlatScrollBars

Specifies that the scrollbars has flat style.

VARIANT_BOOL RW GridLines

Specifies whether the ListView displays grid lines.

IDispatch* RW GroupHeaderImages

Defines which ImageList will be used to display image for each group (Groups) in the list.

Requires Comctl32.dll version 6. Requires visual styles (Themes)

Since:
1.1.10.

IDispatch* R Groups

Defines Groups for ListView.

The method returns a ListViewGroups object. An ListViewGroups object is a collection of the ListViewGroup objects. Requires Comctl32.dll version 6. Requires visual styles (Themes). Without visual styles groups not visible. OwnerData = "TRUE" not supported when WorkAreas or Groups defined (Windows limitation). Example:

o = new ActiveXObject("Scripting.WindowSystemObject")
o.EnableVisualStyles = true

fs = new ActiveXObject("Scripting.FileSystemObject")

f = o.CreateForm(0,0,0,0)

f.ClientWidth = 550
f.ClientHeight = 650
f.CenterControl()

Box = f.CreateListView(10,10,250,300)
Box.HotTrack = true
Box.Align = o.Translate("AL_CLIENT")

Ext = new ActiveXObject("Scripting.WindowSystemObjectExtensions")
Box.LargeImages = Ext.SystemImageListLarge
Box.SmallImages = Ext.SystemImageListSmall
Box.Style = o.Translate("LV_VIEW_ICON")

var Data = ["1.txt","1.jpg","1.png","1.exe","1.bat","1.com","1.js","1.vbs","1.bmp","1.ini","1.xml"]

Group1 = Box.Groups.Add("Group 1")
Group2 = Box.Groups.Add("Group 2")

Group1.SubTitle = "The group 1 description where"
Group1.Task = "Task"
Group1.DescriptionTop = "DescriptionTop"
Group1.DescriptionBottom = "DescriptionBottom"
Group1.SubsetTitle = "SubsetTitle"
Group1.HeaderAlign = o.Translate("AL_CENTER")
Group1.FooterAlign = o.Translate("AL_CENTER")
Group1.Collapsible = true
Group1.Footer = "Group 1 Footer Text"
Group2.Footer = "Group 2 Footer Text"

for (i = 0; i<Data.length; i++)
{
        Item = Box.Add("Item "+i+": "+Data[i])
        Item.ImageIndex = Ext.GetFileSysIconIndexLarge(Data[i],o.Translate("FILE_ATTRIBUTE_ARCHIVE"))
        Item.SubItems(0) = "The first line for "+i
        Item.SubItems(1) = "The second line for (a b c d e f g h j k)"+i
        Item.Group = i % 2
}

Box.OnGroupLinkClick = OnGroupLinkClick

function OnGroupLinkClick(Sender,Group){
        f.MessageBox(Group.Header + " clicked")
}


f.Show()

o.Run()
Result:
Since:
1.1.10.

VARIANT_BOOL RW HeaderDragDrop

Enables drag-and-drop reordering of columns.

Comctl32.dll 4.70 required.

Since:
1.1.9.

VARIANT_BOOL RW HideSelection

Specifies whether the ListView displays which item is selected when an another control has focus.

VARIANT_BOOL RW HotTrack

Specifies that the items under the mouse pointer are automatically highlighted.

LONG RW IconSpacingHeight

Intended for Style = LVS_ICON.

Defines height of an element.

Since:
1.1.10.

LONG RW IconSpacingWidth

Intended for Style = LVS_ICON.

Defines width of an element.

Since:
1.1.10.

VARIANT_BOOL RW InfoTip

Enables hints Hint for items.

Since:
1.1.10.

VARIANT R Item[[in] long Index] (  )

Returns the specified item in the collection.

LONG RW ItemIndex

Gets the index of the focused item.

IDispatch* RW LargeImages

Defines which ImageList will be used to display image for each item in the list when Style = LVS_ICON.

VARIANT_BOOL RW MultiSelect

Specifies whether the user can select more than one item at a time.

VARIANT W OnBeginEdit

Sets the event handler for the OnBeginEdit event.

This event occurs when an item's text editing started.

See also:
ListViewEvents::OnBeginEdit.
Since:
1.1.10.

VARIANT W OnBeginSubItemEdit

Sets the event handler for the OnBeginSubItemEdit event.

See also:
ListViewEvents::OnBeginSubItemEdit.
Since:
1.1.14.

VARIANT W OnColumnClick

Sets the event handler for the OnColumnClick event.

This event occurs when the user clicks a header of an column.

See also:
ListViewEvents::OnColumnClick.

VARIANT W OnColumnResize

Sets the event handler for the OnColumnResize event.

This event occurs when the user resizes an column.

See also:
ListViewEvents::OnColumnResize.

VARIANT W OnData

Sets the event handler for the OnData event.

This event occurs when the ListView needs an data of an item.

See also:
ListViewEvents::OnData.

VARIANT W OnDrawItem

Sets the event handler for the OnDrawItem event.

See also:
ListViewEvents::OnDrawItem.
Since:
1.1.12.

VARIANT W OnEdited

Sets the event handler for the OnEdited event.

This event occurs when an item's text edited.

See also:
ListViewEvents::OnEdited.

VARIANT W OnGroupLinkClick

Sets the event handler for the OnGroupLinkClick event.

This event occurs when an item's text editing started.

See also:
ListViewEvents::OnGroupLinkClick.
Since:
1.1.10.

VARIANT W OnItemCheck

Sets the event handler for the OnItemCheck event.

This event occurs when an item's checked state changes.

See also:
ListViewEvents::OnItemCheck.

VARIANT W OnSubItemEdited

Sets the event handler for the OnSubItemEdited event.

See also:
ListViewEvents::OnSubItemEdited.
Since:
1.1.14.

VARIANT_BOOL RW OwnerData

Specifies that the ListView in Virtual mode.

In that mode the text of an ListItem is not stored in the ListView.

When the ListView needs an data of an item, the OnData event occur.

OwnerData = "TRUE" not supported when WorkAreas or Groups defined (Windows limitation).

Example:

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 300
f.ClientHeight = 150
f.CenterControl()

ListView = f.CreateListView(10,10,280,130,o.Translate("LVS_REPORT | LVS_OWNERDATA"))

ListView.Columns.Add("Column 1",150)
ListView.Columns.Add("Column 2",200)

ListView.OnData = OnData
ListView.Count = 1000

function OnData(Sender,Item)
{
        var i = Item.Index
        Item.Text = "Item "+i
        Item.SubItems(0) = "SubItem 1 of "+i
}

f.Show()

o.Run()
Result:

VARIANT_BOOL RW QuickEdit

This property used when ReadOnlySubItems = "FALSE" and the user can edit a sub item of an item.

If "FALSE" then the user must select the item before edit the sub item. If "TRUE" then the sub item editing is started when the user clicks the sub item.

Default value: "TRUE".

Since:
1.1.14.
See also:
OnSubItemEdited.

OnBeginSubItemEdit.

VARIANT_BOOL RW ReadOnly

Use this property to prevent the user from editing text of an item in the ListView control.

VARIANT_BOOL RW ReadOnlySubItems

If "FALSE" the ListView's sub items can be edited.

Sub items is available only if Style = LVS_REPORT.

Default value: "TRUE".

Since:
1.1.14.
See also:
OnSubItemEdited.

OnBeginSubItemEdit.

VARIANT_BOOL RW RowSelect

Specifies that the entire row in the ListView will be selected when an item will be selected.

LONG R SelCount

Gets the number of items that are selected.

IDispatch* RW SmallImages

Defines which ImageList will be used to display image for each item in the list when Style is not LVS_ICON.

IDispatch* RW StateImages

Defines which ImageList will be used to display state image for each item.

LONG RW Style

Gets or sets the style of the ListView.

This parameter can be one of the following values:

Default value: LVS_ICON.

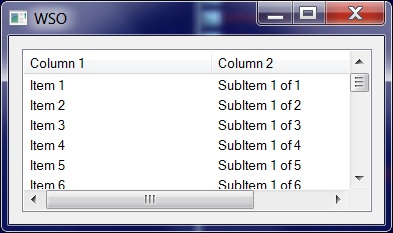

LVS_REPORT

Items displayed in the reports mode, for example:

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 300
f.ClientHeight = 150
f.CenterControl()

ListView = f.CreateListView(10,10,280,130,o.Translate("LVS_REPORT"))

ListView.Columns.Add("Column 1",150)
ListView.Columns.Add("Column 2",200)

for (i = 1; i<25; i++)
{
        var Item = ListView.Add("Item "+i)
        Item.SubItems(0) = "SubItem 1 of "+i
}

f.Show()

o.Run()
Result:

LV_VIEW_TILE

For LV_VIEW_TILE required Comctl32.dll version 6 and themes (Themes). SubItems defines additional text lines for an element in this mode. TileLines defines count of additional text lines. An Column (Columns) must be specified for displaying additional lines. Example:

o = new ActiveXObject("Scripting.WindowSystemObject")
o.EnableVisualStyles = true

fs = new ActiveXObject("Scripting.FileSystemObject")

f = o.CreateForm(0,0,0,0)

f.ClientWidth = 550
f.ClientHeight = 650
f.CenterControl()

Box = f.CreateListView(10,10,250,300)
Box.HotTrack = true
Box.Align = o.Translate("AL_CLIENT")

Ext = new ActiveXObject("Scripting.WindowSystemObjectExtensions")
Box.LargeImages = Ext.SystemImageListLarge
Box.SmallImages = Ext.SystemImageListSmall
Box.Style = o.Translate("LV_VIEW_TILE")

Box.TileLines = 2

//We need to add some column for tile view
Box.Columns.Add("Column 1")
Box.Columns.Add("Column 2")

var Data = ["1.txt","1.jpg","1.png","1.doc","1.gif","1.xls","1.exe","1.bat"]

for (i = 0; i<Data.length; i++)
{
        Item = Box.Add(Data[i])
        Item.ImageIndex = Ext.GetFileSysIconIndexLarge(Data[i],o.Translate("FILE_ATTRIBUTE_ARCHIVE"))
        Item.SubItems(0) = "The first line for "+i
        Item.SubItems(1) = "The second line for (a b c d e f g h j k)"+i
}

f.Show()

o.Run()
Result:

ULONG RW TextBkColor

Gets or sets the color of the text background of an item.

ULONG RW TileHeight

Intended for Style = LV_VIEW_TILE.

Defines height of an element.

Since:
1.1.10.

ULONG RW TileLines

Intended for Style = LV_VIEW_TILE.

Defines maximum number of text lines in each item label, not counting the title.

Since:
1.1.10.

ULONG RW TileWidth

Intended for Style = LV_VIEW_TILE.

Defines width of an element.

Since:
1.1.10.

VARIANT_BOOL RW TransparentBackground

When "TRUE" control will transparent.

Requires Comctl32.dll version 6. Requires visual styles (Themes).

Since:
1.1.10.

IDispatch* R WorkAreas

Defines Work Areas for ListView.

Returns a WorkAreas object. An WorkAreas object is a collection of the WorkArea objects. OwnerData = "TRUE" not supported when WorkAreas or Groups defined (Windows limitation). Example:

o = new ActiveXObject("Scripting.WindowSystemObject")

fs = new ActiveXObject("Scripting.FileSystemObject")

f = o.CreateForm(0,0,0,0)

f.ClientWidth = 450
f.ClientHeight = 550
f.CenterControl()
f.Text = "ListView Work Areas Demo"

f.BorderWidth = 10
f.MinWidth = 500
f.MinHeight = 350

Box = f.CreateListView(10,10,250,300)
Box.HotTrack = true
Box.Align = o.Translate("AL_CLIENT")

Ext = new ActiveXObject("Scripting.WindowSystemObjectExtensions")
Box.LargeImages = Ext.SystemImageListLarge

Box.WorkAreas.Add(10,10,180,180)
Box.WorkAreas.Add(200,200,200,200)

for (i = 0; i<10; i++)
{
        Item = Box.Add("Item "+i)
        Item.ImageIndex = Ext.GetFileSysIconIndexLarge("1.txt",o.Translate("FILE_ATTRIBUTE_ARCHIVE"))
        if ((i % 2) == 0)
        {
                Item.SetPosition(210,210)
        }
}
Box.Arrange()

f.Show()

o.Run()
Result:
Since:
1.1.10.

VARIANT_BOOL RW WrapText

Specifies that the text of the items can be wrapped.

WSO 1.1 Documentation. Date modified:Wed Aug 12 18:12:51 2015. (C) Veretennikov A. B. 2004-2015
