WorkAreas Interface Reference

Defines Work Areas for ListView. More...

List of all members.

Public Member Functions
	Remove ([in] VARIANT Index)
	Call this method to remove one item from the collection.
	Clear ()
	Removes all of the items from the collection.
	Add ([in] LONG Left,[in] LONG Top,[in] LONG Width,[in] LONG Height,[out, retval] IDispatch **Item)
	Call this method to create a new item in the collection.
Properties
LPUNKNOWN R	_NewEnum []
	Returns the enumerator for the collection.
VARIANT R	Item [[in] long Index] []
	Returns the specified item in the collection.
long R	Count []
	Returns the number of items in the collection.

---

Detailed Description

Defines Work Areas for ListView.

The method WorkAreas returns a WorkAreas object. An WorkAreas object is a collection of the WorkArea objects. Example:

o = new ActiveXObject("Scripting.WindowSystemObject")

fs = new ActiveXObject("Scripting.FileSystemObject")

f = o.CreateForm(0,0,0,0)

f.ClientWidth = 450
f.ClientHeight = 550
f.CenterControl()
f.Text = "ListView Work Areas Demo"

f.BorderWidth = 10
f.MinWidth = 500
f.MinHeight = 350

Box = f.CreateListView(10,10,250,300)
Box.HotTrack = true
Box.Align = o.Translate("AL_CLIENT")

Ext = new ActiveXObject("Scripting.WindowSystemObjectExtensions")
Box.LargeImages = Ext.SystemImageListLarge

Box.WorkAreas.Add(10,10,180,180)
Box.WorkAreas.Add(200,200,200,200)

for (i = 0; i<10; i++)
{
        Item = Box.Add("Item "+i)
        Item.ImageIndex = Ext.GetFileSysIconIndexLarge("1.txt",o.Translate("FILE_ATTRIBUTE_ARCHIVE"))
        if ((i % 2) == 0)
        {
                Item.SetPosition(210,210)
        }
}
Box.Arrange()

f.Show()

o.Run()

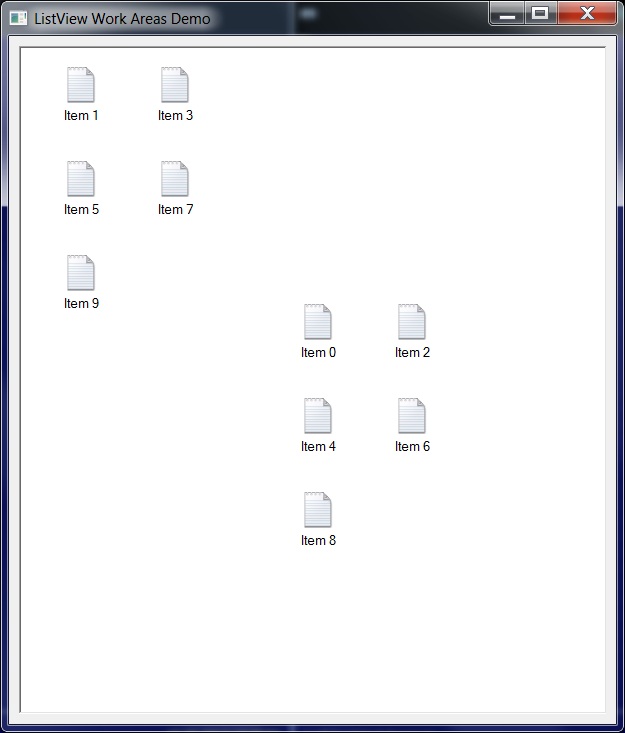

Result:

Since:

1.1.10.

---

Member Function Documentation

Add	(	[in] LONG	Left,
		[in] LONG	Top,
		[in] LONG	Width,
		[in] LONG	Height,
		[out, retval] IDispatch **	Item
	)

Call this method to create a new item in the collection.

Parameters:

	Left	horizontal position of the area.
	Top	vertical position of the area.
	Width	width of the area.
	Height	height of the area.

Return values:

Item

A new WorkArea object.

Since:

1.1.10.

Clear

(

)

Removes all of the items from the collection.

Since:

1.1.10.

Remove

(

[in] VARIANT

Index

)

Call this method to remove one item from the collection.

Parameters:

Index

The index of the element to remove or the element itself.

Since:

1.1.10.

---

Property Documentation

LPUNKNOWN R _NewEnum

Returns the enumerator for the collection.

Since:

1.1.10.

long R Count

Returns the number of items in the collection.

Since:

1.1.10.

VARIANT R Item[[in] long Index]

(

)

Returns the specified item in the collection.

Since:

1.1.10.

---
