ComboBox Interface Reference

ComboBox control displays a text edit control combined with a ListBox control. More...

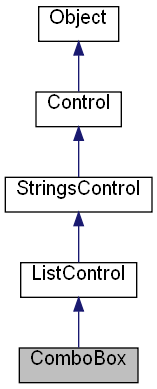

Inheritance diagram for ComboBox:

Collaboration diagram for ComboBox:

List of all members.

Properties
ULONG RW	DropDownCount []
	Specifies how many items can be displayed in the listbox before a scrollbar control becomes necessary.
LONG RW	Style []
	Specifies the style of the window.
LONG RW	CharCase []
	Specifies convertion of characters to lowercase or uppercase.
VARIANT_BOOL RW	ReadOnly []
	Use this property to prevent the user from typing or editing text in the edit control.
VARIANT_BOOL RW	DroppedDown []
	Specifies when the listbox visible (Style must be CBS_DROPDOWN or CBS_DROPDOWNLIST).
BSTR RW	CueBanner []
	Specifies the cue banner text.
VARIANT_BOOL RW	CueBannerAlwaysVisible []
	If specified true then the cue banner (specified by CueBanner) will be visible even when the control has focus.
IDispatch *R	BalloonTip []
	Returns BalloonTip object for configuration an Balloon Tip options.
VARIANT W	OnDropDown []
	Sets the event handler for the OnDropDown event.

---

Detailed Description

ComboBox control displays a text edit control combined with a ListBox control.

A ComboBox allows the user to select items from the list or to enter new text.

When the user changes selection, the OnChange event occur.

See also the method CreateComboBox of the Frame.

Example 1 (JScript):

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 200
f.ClientHeight = 100
f.CenterControl()

ComboBox = f.CreateComboBox(10,10,100,25)
with (ComboBox)
{
        Add("Item 1")
        Add("Item 2")
        Add("Item 3")
        Add("Item 4")
        Add("Item 5")
}

f.Show()

o.Run()

Result:

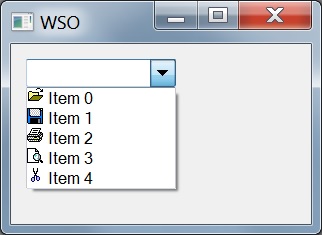

Example 2 (JScript):

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 200
f.ClientHeight = 120
f.CenterControl()

ComboBox = f.CreateComboBox(10,10,100,100)
ComboBox.Images.Load(CurrentDir()+"ToolBar.bmp")

for (i = 0; i<5; i++)
{
        ComboBox.Add("Item "+i)
        ComboBox.ImageIndex(i) = i
}

f.Show()

o.Run()

function CurrentDir() {s = WScript.ScriptFullName; s = s.substring(0,s.lastIndexOf("\\")+1); return s; }

Result:

---

Property Documentation

IDispatch* R BalloonTip

Returns BalloonTip object for configuration an Balloon Tip options.

Minimum OS: Windows XP. Requires visual styles (Themes).

Since:

1.1.8.

Note:

Style must be CBS_DROPDOWN.

LONG RW CharCase

Specifies convertion of characters to lowercase or uppercase.

This parameter can be a one of the following values:

• CC_NORMAL No convertion (default).
• CC_LOWERCASE Converts to lowercase all text in both the selection field and the list.
• CC_UPPERCASE Converts to uppercase all text in both the selection field and the list.

BSTR RW CueBanner

Specifies the cue banner text.

Minimum OS: Windows XP. Requires visual styles (Themes).

Since:

1.1.8.

See also:

CueBanner.

Note:

Style must be CBS_DROPDOWN.

Example (JScript, CBS_DROPDOWN):

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 200
f.ClientHeight = 120
f.CenterControl()

ComboBox = f.CreateComboBox(10,10,180,100)
ComboBox.CueBanner = "Enter text where"

for (i = 0; i<5; i++)
{
        ComboBox.Add("Item "+i)
}

f.CreateButton(10,40,75,25,"OK")

f.Show()

o.Run()

Result:

VARIANT_BOOL RW CueBannerAlwaysVisible

If specified true then the cue banner (specified by CueBanner) will be visible even when the control has focus.

Minimum OS: Windows XP. Requires visual styles (Themes).

Since:

1.1.8.

Note:

Style must be CBS_DROPDOWN.

ULONG RW DropDownCount

Specifies how many items can be displayed in the listbox before a scrollbar control becomes necessary.

Default: 30.

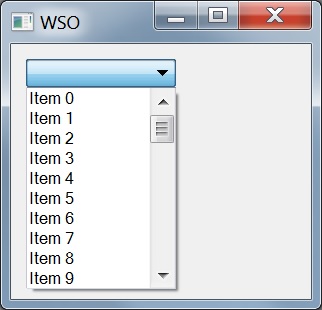

Example 1 (JScript, CBS_DROPDOWN):

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 200
f.ClientHeight = 170
f.CenterControl()

ComboBox = f.CreateComboBox(10,10,100,25,o.Translate("CBS_DROPDOWNLIST"))
ComboBox.DropDownCount = 10

for (i = 0; i<50; i++)
        ComboBox.Add("Item "+i)

f.Show()

o.Run()

Result:

VARIANT_BOOL RW DroppedDown

Specifies when the listbox visible (Style must be CBS_DROPDOWN or CBS_DROPDOWNLIST).

VARIANT W OnDropDown

Sets the event handler for the OnDropDown event.

Since:

1.1.9.

VARIANT_BOOL RW ReadOnly

Use this property to prevent the user from typing or editing text in the edit control.

LONG RW Style

Specifies the style of the window.

This parameter can be a one of the following values:

• CBS_SIMPLE Displays the list box at all times. The current selection in the list box is displayed in the edit control.
• CBS_DROPDOWN (default) The list box is not displayed unless the user selects an icon next to the edit control.
• CBS_DROPDOWNLIST Similar CBS_DROPDOWN except that the edit control is replaced by a static text item that displays the current selection.

Example 1 (JScript, CBS_DROPDOWN):

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 200
f.ClientHeight = 100
f.CenterControl()

ComboBox = f.CreateComboBox(10,10,100,25)
with (ComboBox)
{
        Add("Item 1")
        Add("Item 2")
        Add("Item 3")
        Add("Item 4")
        Add("Item 5")
}

f.Show()

o.Run()

Result:

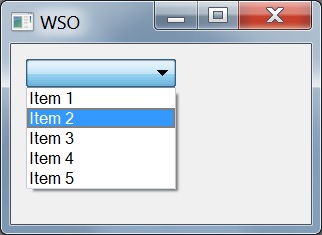

Example 2 (JScript, CBS_DROPDOWNLIST):

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 200
f.ClientHeight = 120
f.CenterControl()

ComboBox = f.CreateComboBox(10,10,100,25,o.Translate("CBS_DROPDOWNLIST"))
with (ComboBox)
{
        Add("Item 1")
        Add("Item 2")
        Add("Item 3")
        Add("Item 4")
        Add("Item 5")
}

f.Show()

o.Run()

Result:

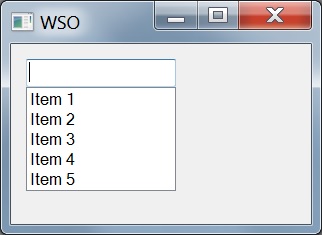

Example 3 (JScript, CBS_SIMPLE):

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 200
f.ClientHeight = 120
f.CenterControl()

ComboBox = f.CreateComboBox(10,10,100,100,o.Translate("CBS_SIMPLE"))
with (ComboBox)
{
        Add("Item 1")
        Add("Item 2")
        Add("Item 3")
        Add("Item 4")
        Add("Item 5")
}

f.Show()

o.Run()

Result:

---
