IPAddress Interface Reference

A IPAddress control enables the user to specify an IP Address. More...

Inheritance diagram for IPAddress:

Collaboration diagram for IPAddress:

List of all members.

Public Member Functions
	SetRange ([in, range(0, 3)] LONG Index,[in] BYTE Min,[in] BYTE Max)
	Sets the valid range for the specified field in the Control.
Properties
ULONG RW	Value []
	Gets or sets the IP Address in the integer form.
VARIANT_BOOL R	IsBlank []
	Returns true if the address fields is empty.

---

Detailed Description

A IPAddress control enables the user to specify an IP Address.

When the user changes selection, the OnChange event occur.

See also the method CreateIPAddress of the Frame.

Example (JScript):

o = new ActiveXObject("Scripting.WindowSystemObject")
o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.ClientWidth = 200
f.ClientHeight = 80
f.CenterControl()

IPAddress = f.CreateIPAddress(10,10,150,30)

Str = "10.64.1.2"
Values = Str.split(".")

Value = 0

for (i = 0; i<4; i++)
        Value |= new Number(Values[3-i]) << i*8

IPAddress.Value = Value

f.Text = Str

f.Show()

o.Run()

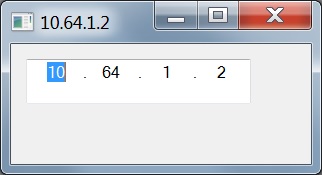

Result:

---

Member Function Documentation

SetRange	(	[in, range(0, 3)] LONG	Index,
		[in] BYTE	Min,
		[in] BYTE	Max
	)

Sets the valid range for the specified field in the Control.

Parameters:

	Index	Index for the field.
	Min	The minimum value for the field.
	Max	The maximum value for the field.

---

Property Documentation

VARIANT_BOOL R IsBlank

Returns true if the address fields is empty.

ULONG RW Value

Gets or sets the IP Address in the integer form.

---
