Header Interface Reference

A Header is a control that is may be positioned above columns of a table. More...

Inheritance diagram for Header:

Collaboration diagram for Header:

List of all members.

Public Member Functions
	Remove ([in] VARIANT Index)
	Call this method to remove one item from the collection.
	Clear ()
	Removes all of the items from the collection.
	Add ([in] BSTR Text,[in, defaultvalue(100)] LONG Width,[in, defaultvalue(AL_LEFT)] LONG TextAlign,[out, retval] IDispatch **pItem)
	This method creates a new HeaderItem.
Properties
LPUNKNOWN R	_NewEnum []
	Returns the enumerator for the collection.
VARIANT R	Item [[in] long Index] []
	Returns the specified item in the collection.
long R	Count []
	Returns the number of items in the collection.
IDispatch *RW	Images []
	Determines which ImageList is linked with the Header.
VARIANT_BOOL RW	HotTrack []
	Specifies that the header items under the mouse pointer are automatically highlighted.
VARIANT_BOOL RW	Flat []
	Specifies that the header items appear with the flat style.
VARIANT_BOOL RW	DragDrop []
	Enables drag-and-drop reordering of columns.
VARIANT W	OnColumnClick []
	Sets the event handler for the OnColumnClick event.
VARIANT W	OnColumnResize []
	Sets the event handler for the OnColumnResize event.

---

Detailed Description

A Header is a control that is may be positioned above columns of a table.

The Header contains a title for each column. The Header object is an collection of HeaderItem objects.

See also the method CreateHeader of the Frame.

See also HeaderEvents.

Example (JScript):

o = new ActiveXObject("Scripting.WindowSystemObject")

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 320
f.ClientHeight = 100
f.CenterControl()

Header = f.CreateHeader(10,10,300,25)
with (Header)
{
        Add("Column 1")
        Add("Column 2")
        Add("Column 3")
}

f.Show()

o.Run()

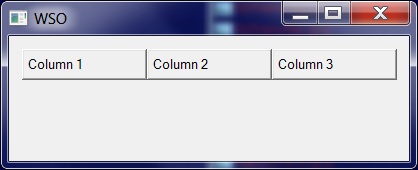

Result:

Example 2 (JScript):

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 320
f.ClientHeight = 100
f.CenterControl()

Header = f.CreateHeader(10,10,300,25)
with (Header)
{
        Add("Column 1")
        Add("Column 2")
        Add("Column 3")
}

f.Show()

o.Run()

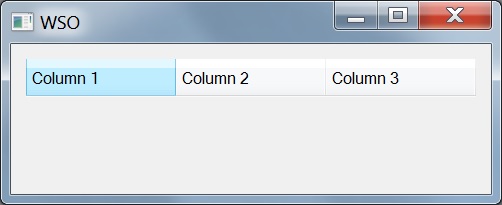

Result:

---

Member Function Documentation

Add	(	[in] BSTR	Text,
		[in, defaultvalue(100)] LONG	Width,
		[in, defaultvalue(AL_LEFT)] LONG	TextAlign,
		[out, retval] IDispatch **	pItem
	)

This method creates a new HeaderItem.

Parameters:

	Text	Specifies the title of the HeaderItem.
	Width	Specifies the width of the HeaderItem.
	TextAlign	Specifies the text align of the HeaderItem.

Return values:

pItem

HeaderItem object

Clear

(

)

Removes all of the items from the collection.

Remove

(

[in] VARIANT

Index

)

Call this method to remove one item from the collection.

Parameters:

Index

The index of the element to remove or the element itself.

---

Property Documentation

LPUNKNOWN R _NewEnum

Returns the enumerator for the collection.

long R Count

Returns the number of items in the collection.

VARIANT_BOOL RW DragDrop

Enables drag-and-drop reordering of columns.

Comctl32.dll 4.70 required.

Since:

1.1.9.

VARIANT_BOOL RW Flat

Specifies that the header items appear with the flat style.

VARIANT_BOOL RW HotTrack

Specifies that the header items under the mouse pointer are automatically highlighted.

IDispatch* RW Images

Determines which ImageList is linked with the Header.

See also ImageIndex.

VARIANT R Item[[in] long Index]

(

)

Returns the specified item in the collection.

VARIANT W OnColumnClick

Sets the event handler for the OnColumnClick event.

This event occurs when the user clicks a header item.

VARIANT W OnColumnResize

Sets the event handler for the OnColumnResize event.

This event occurs when the user resizes a header item.

---
